Windows XP Wireless LAN Card Installation

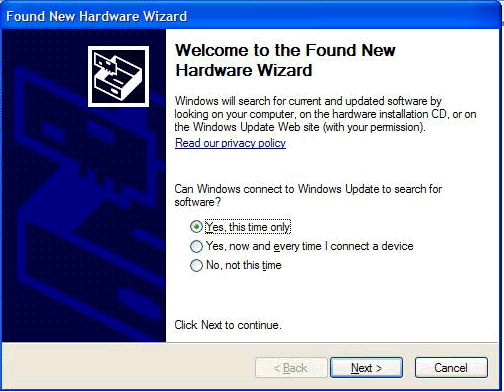

First screen - The new WLAN card has been detected.

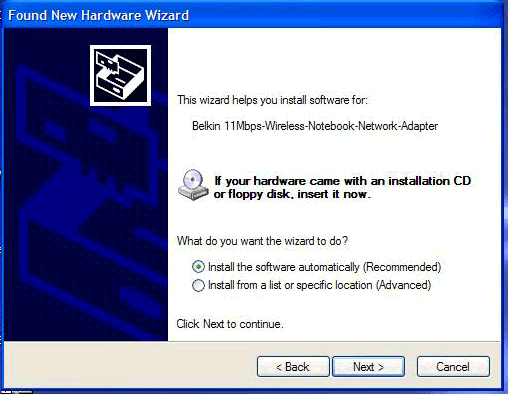

Second screen - If Windows XP does NOT have a driver for the WLAN card.

You will then be prompted by the driver installation software. If it offers "Windows Wireless Utility" as an option, select that option.

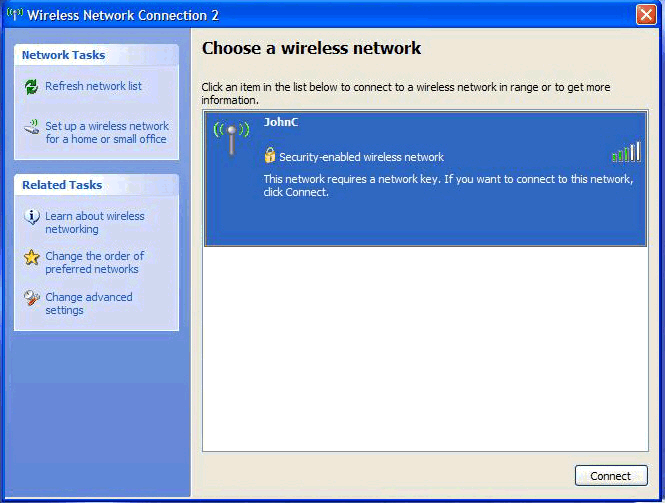

Third screen - Windows XP has found one or more wireless networks and you can choose the one to use.

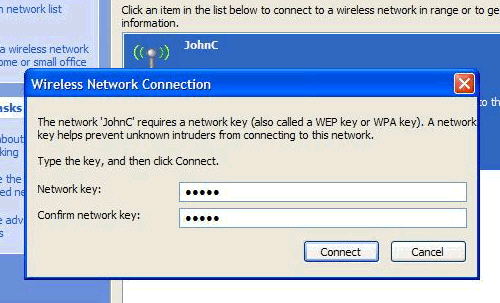

Fourth screen - A secure network requires a key, which is entered here. If the network is open, you will not see this screen.

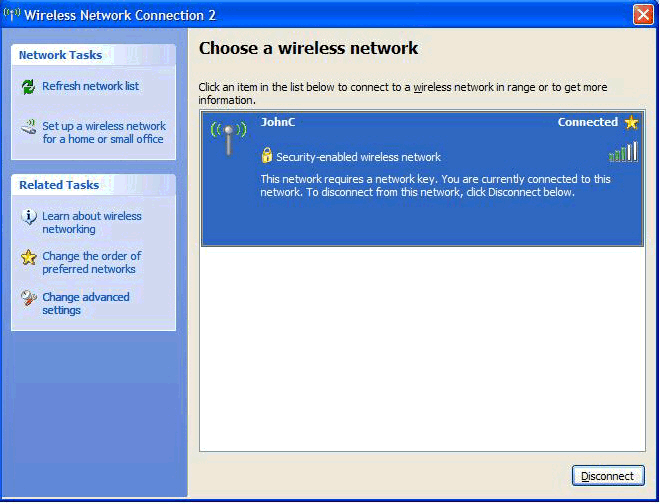

Fifth screen - You are connected to the wireless network. Click "Disconnect" to disconnect from the network.
